About This

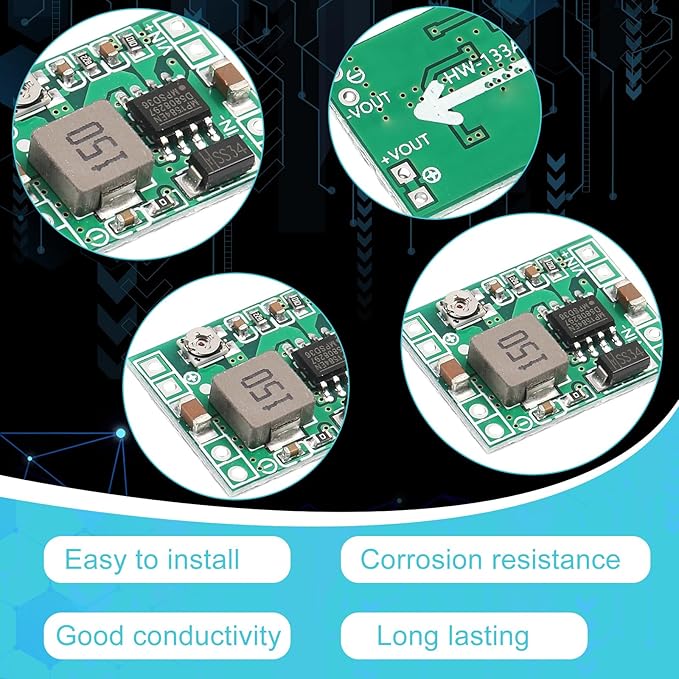

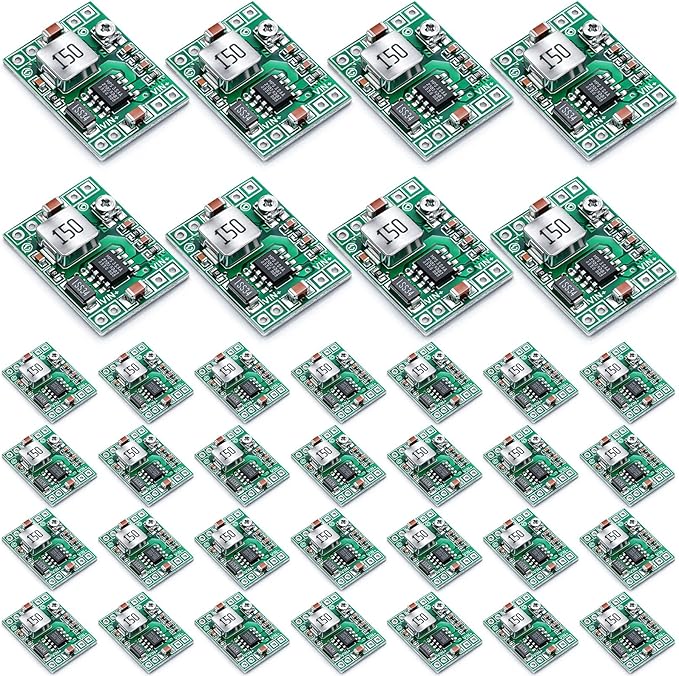

• Mini MP1584EN DC to DC buck converter module with a wide operating range

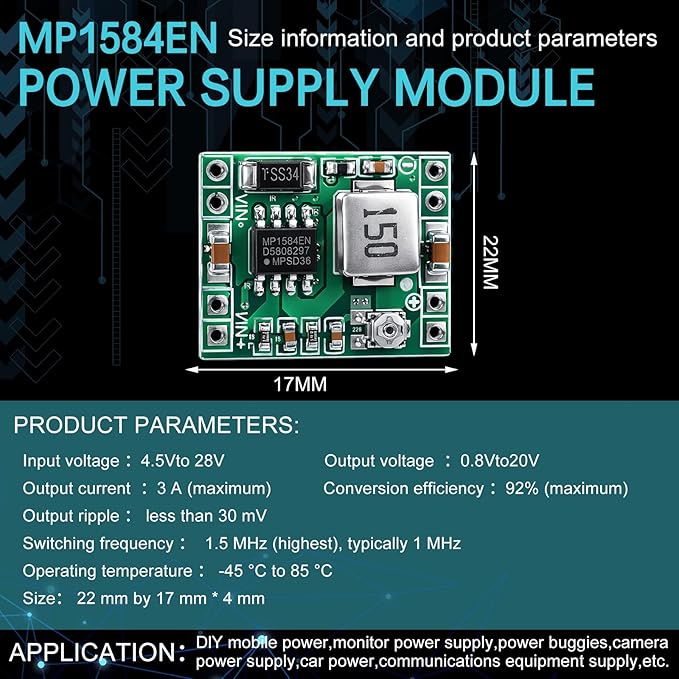

• Input voltage: 4.5V to 28V; Output voltage: 0.8V to 20V

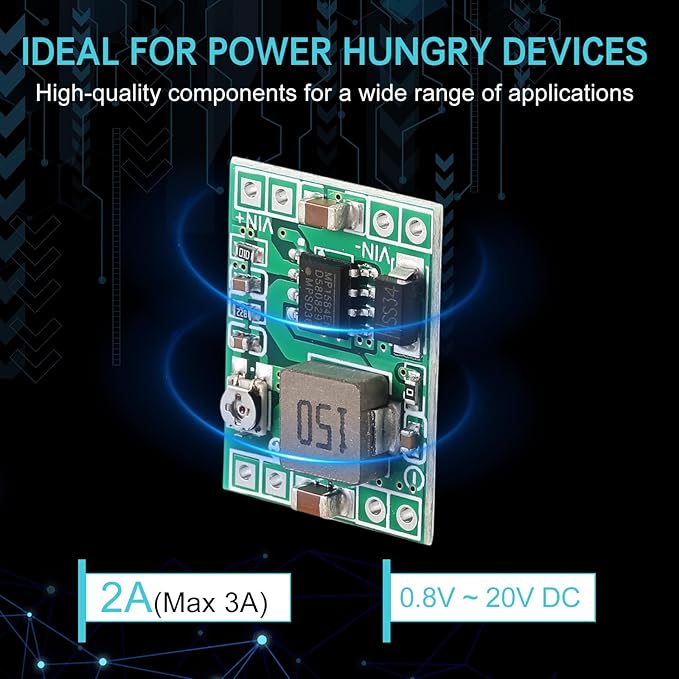

• Output Current: 3 A (maximum); Conversion efficiency: 92% (maximum), The actual power is related to voltage and current; The maximum current supported is 3A; Actual load must be used for testing
• Output ripple: less than 30 mV; Switching frequency: 1.5 MHz (highest), typically 1 MHz

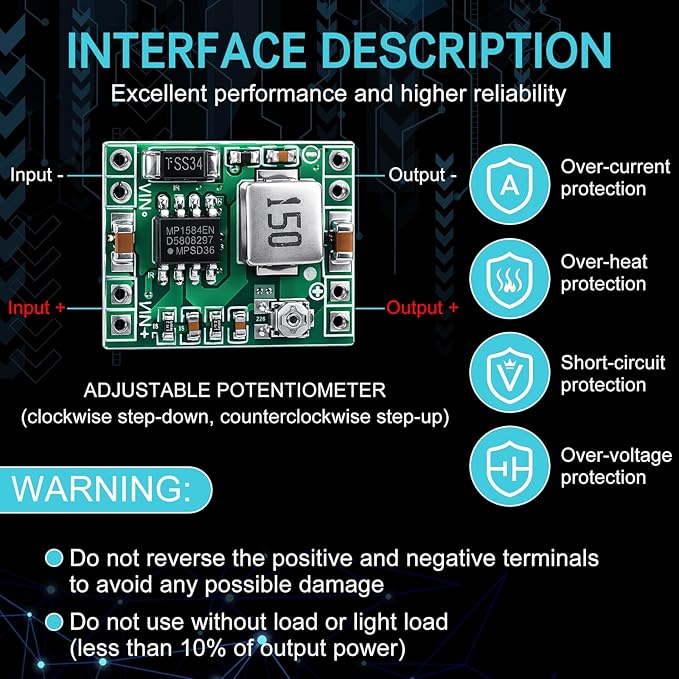

• Operating temperature: -45 u2103 to 85 u2103; Size: 22 mm by 17 mm by 4 mm; Warning: to avoid any possible damage; Do not use light load (less than 10% of output power) or without load

Overview

• Brand : EBOOT
• Color : Green
• Input Voltage : 3 Volts
• Item dimensions L x W x H : 9.45 x 7.09 x 0.63 inches
• Output Voltage : 20 Volts
