About This

• Parameter --- Input voltage: DC 6-30V; Output voltage: DC 7-32V continuously adjustable (the output voltage must be at least 1.5V higher than the input voltage); Output current: 5A (max), adjustable, recommended to use within 4A; Output power: 60W (max), recommended to use within 50W.

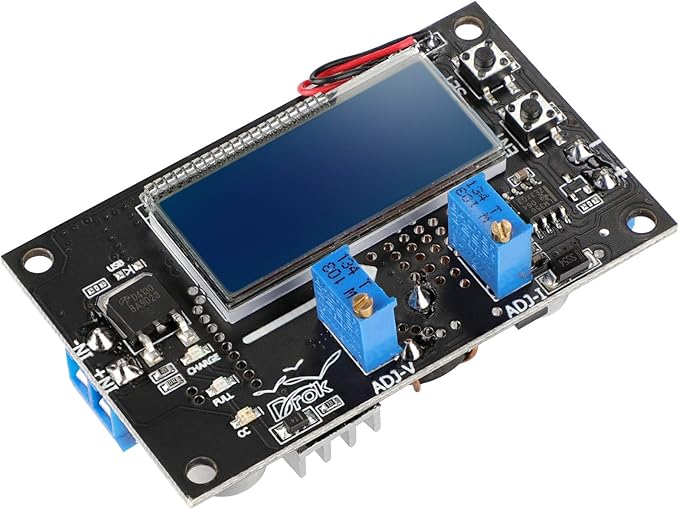

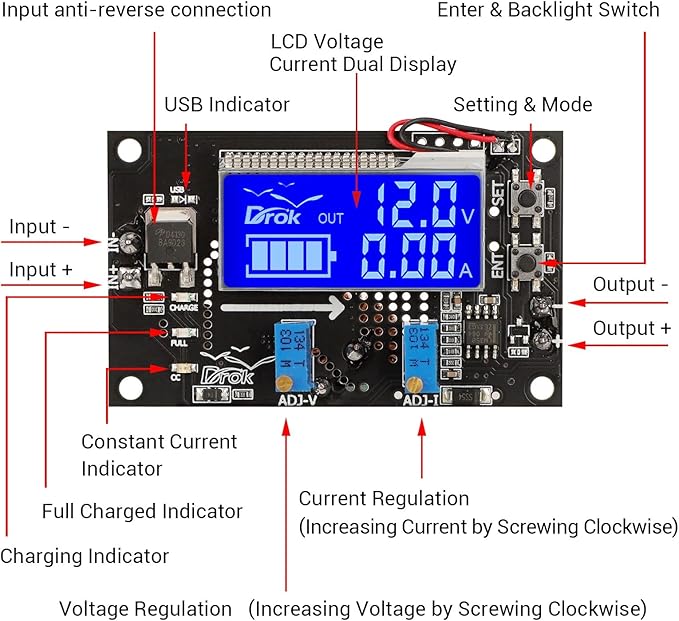

• Clear LCD Display --- The boost board is designed with a large clear digital LCD display on which shows both voltage and current value simultaneously. Which is easy to read and can help the user easily monitor the output voltage, then largely enjoy their DIY work.
• General Application --- This voltage step up converter can be used as ordinary step-up module with over-current protection, constant current LED driver module; DIY a solar power controller, etc.

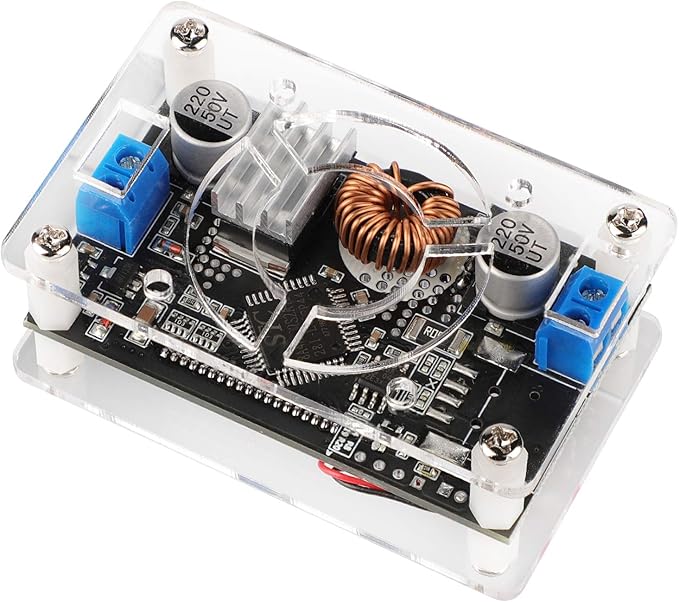

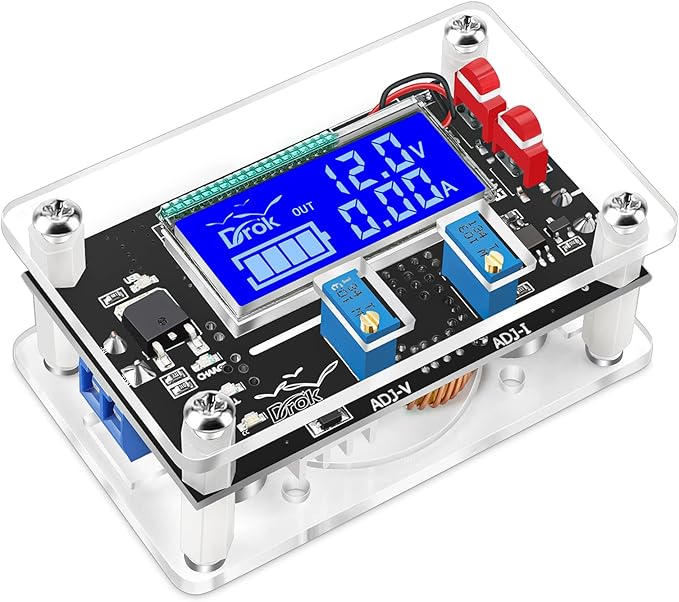

• Features --- Constant current/voltage mode; Voltage calibration calibration; Protective case; Short-circuit protection; Over-temperature protection; Input reverse connection protection. You can find the PDF Instructions on this page -- Product information -- Product guides and documents -- User Manual [PDF].

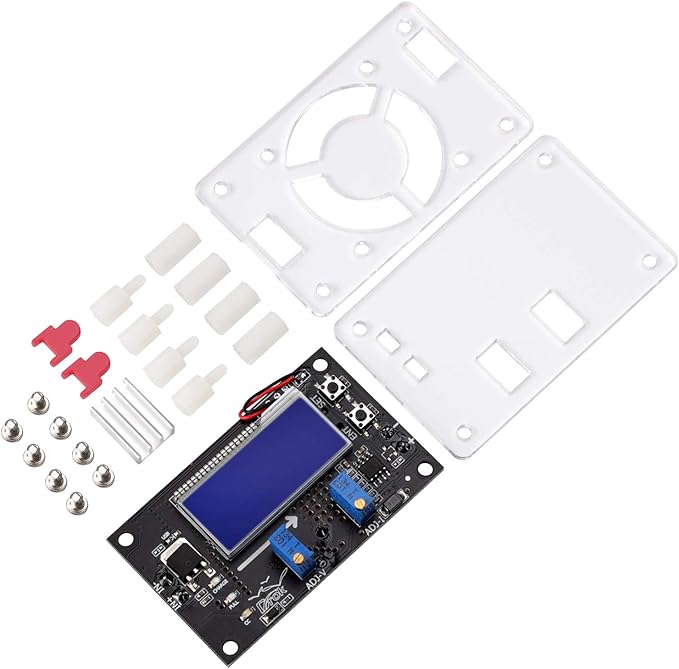

• NOTE --- 1). Constant current adjustable means that CC mode only works when the actual load output current is greater than the setting one, otherwise it will work in a constant voltage state, not the current is adjusted to 2A, then it will become 2A for any load being connected. And if the CC value to be adjusted is small, adjust “ADJ-I” counterclockwise a few more times to change. 2). The case is packaged disassembly to avoid damage during transit. It needs to be manually installed.

Overview

• Brand : DROK
• Power Source : DC

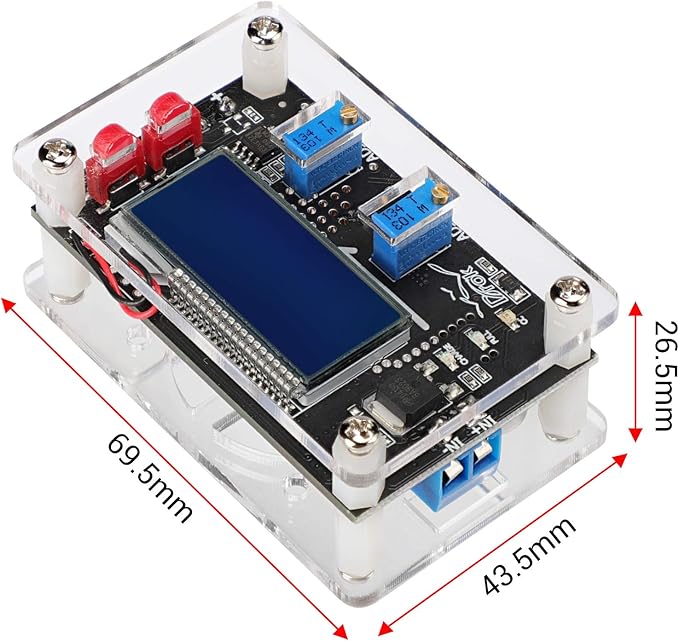

• Product Dimensions : 1.71"D x 2.73"W x 1.04"H
• Mounting Type : PCB Mount
• Current Rating : 5 Amps
